Integration guide with Fortinet

Welcome to the configuration guide for integrating Fortinet with Hector. At the end of this guide, you will be able to automatically synchronize your Fortinet firewalls, switches and access points into Hector as assets. The integration connects to your FortiManager appliance through its JSON-RPC API.

1. Login to your Hector account

You must be an administrator to activate the Fortinet integration.

2. Integrations

Navigate to Settings, in the Integrations section you can find the Fortinet integration in the Inventory tab.

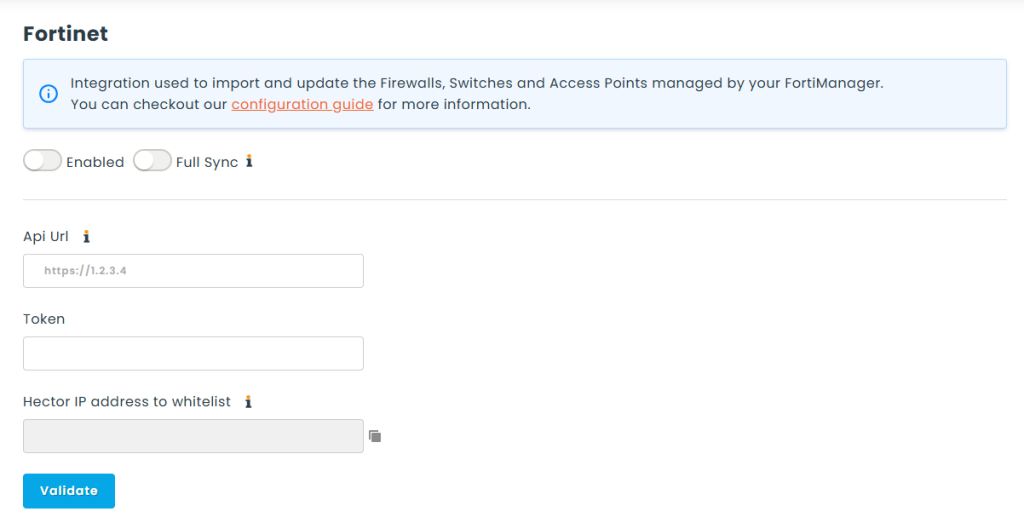

Once in the integration settings, the Authentication tab has three fields to complete :

• Url / IP address : the address of your FortiManager appliance, for example https://1.2.3.4.
• Token : a REST API token generated on your FortiGate (see Generate a Fortinet API token below).
• Hector IP address to whitelist : this read-only field shows the IP address Hector connects from. You must add this IP to the FortiGate Trusted Hosts of the API administrator, otherwise the connection will be refused. Use the copy button next to the field.

Generate a Fortinet API token

You can generate the token from the FortiGate, using either the graphical interface (GUI) or the command line (CLI).

Method A : via the FortiGate GUI

1. Log in to your FortiGate firewall as a super_admin.
2. Navigate to System > Administrators.
3. Click Create New and select REST API Admin.
4. Configure the API user :
   Username : give it a descriptive name (e.g. api_hector).
   Administrator Profile : select a profile that has at least read permissions on the devices you want to import.
   Trusted Hosts (required) : enter the Hector IP address shown in the integration settings.
5. Click OK.
6. Copy the token displayed in the pop-up window.

Important : this token is only displayed once. Copy it and store it securely. If you lose it, you will have to generate a new one, which invalidates the old token. If you revoke the token used in Hector, you must update it to a new one for the integration to keep working.

Method B : via the FortiGate CLI

config system api-user
    edit "api_hector"
        set accprofile "super_admin"   <-- or your custom restricted profile
        set vdom "root"
        config trusted-host
            edit 1
            set ip 192.168.1.50 255.255.255.255   <-- replace with the Hector IP from the integration settings
            next
        end
    next
end

3. Options

Once you have entered the Url and the Token, click on Validate. If everything is good, you will be redirected to another tab where you will be able to select the options you want.

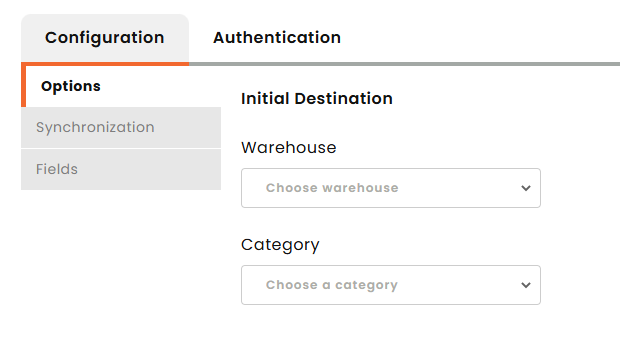

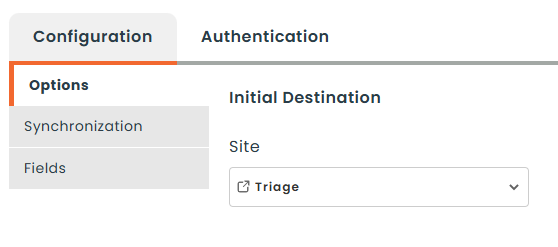

Initial destination

This part corresponds to the default Stockroom your assets will be directed to. The category is configured per device type in the Synchronization tab (see below).

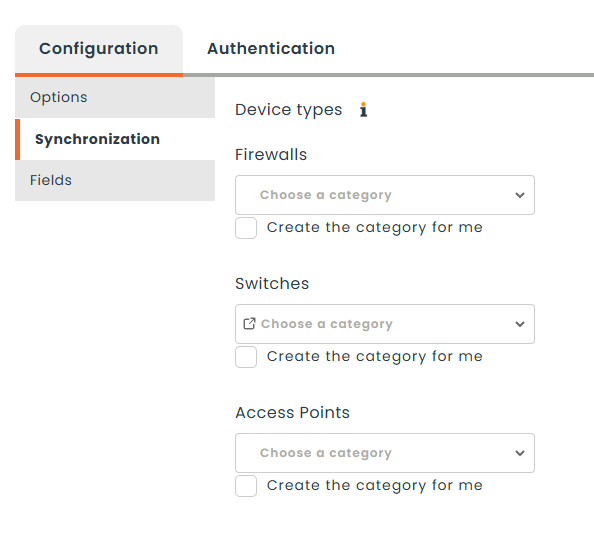

Synchronization

Here you decide which Fortinet device types to import and which category each one lands in. There is one row per device type — Firewalls, Switches and Access Points — and for each you can :

• Assign a category : select an existing category from the dropdown. Use this when you have already created your categories in Hector.
• Create the category for me : check this box to let Hector create the category automatically, named after the device type in your instance language.

A device type is synchronized only when it has a category assigned or Create the category for me checked. Leave both empty for any device type you do not want to import.

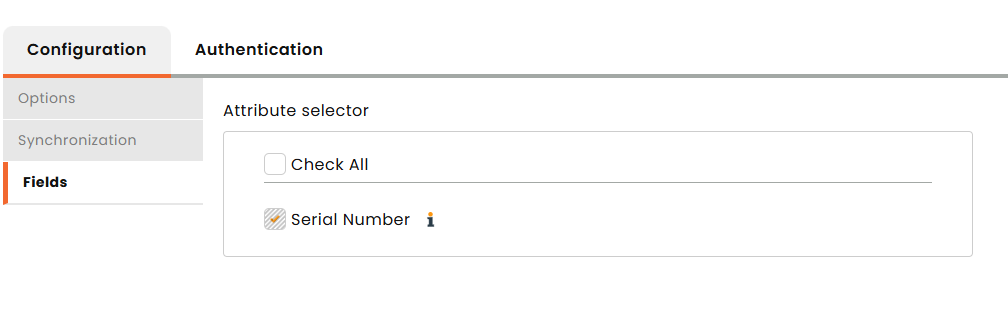

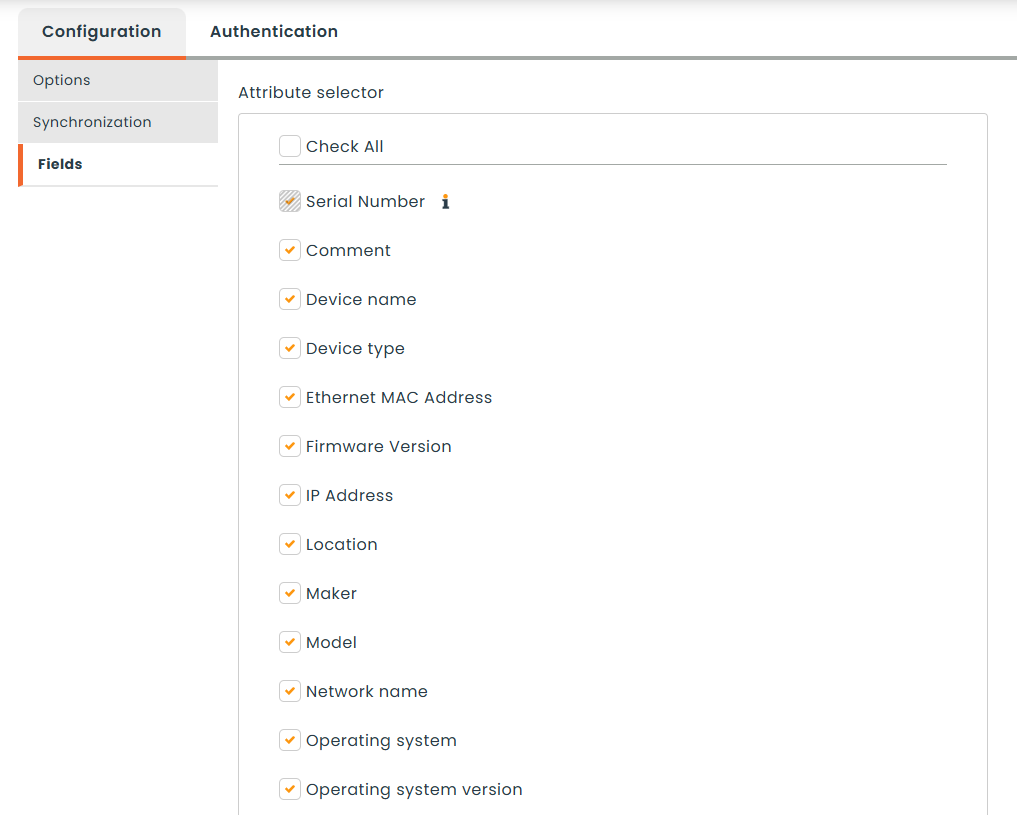

Fields

In the attribute selector you can choose the additional fields imported in Hector as attributes. Note that the attributes will be automatically created if it is your first time using this attribute in an integration (all integrations use the same attributes), and its name will be set following your instance language, not your user language preference.

Serial Number is our synchronization key, so it cannot be unchecked.

How the Integration Works

What to expect when syncing

Once synchronization is enabled, Hector will start syncing with FortiManager based on your integration settings once per day in the evening.

Field Mapping

When a Fortinet device is created in Hector, the following fields are populated:

Fortinet Field	Hector Field	Notes
Device type	Category	Each device type is placed in the category you assigned it in the Synchronization tab, or in a category Hector creates for you (named after the device type in your instance language) when Create the category for me is selected.
Model	Part
Name	Title
Serial number	—	Used as the synchronization key, so it is always imported.

Other fields will be populated following the attributes you chose in the Fields tab.

Note : Some attributes are only available for certain device types. Location is only reported for Access Points — Firewalls and Switches do not expose a location field. Runtime values such as IP address and OS version are read from the live device status, so a device that is currently offline may not report them.

That completes the Fortinet integration guide. If you have any questions, or would like support integrating in your environment, please reach out to our sales team for more information.
